T.Crystal Valve Actuator 10N.m - 220V AC - KT32S Control (Fail Safe)
R 4,574.70
Skip to product information
10 left
T.Crystal Valve Actuator 10N.m - 220V AC - KT32S Control (Fail Safe)
R 4,574.70
15% VAT Included.
Shipping will be calculated at checkout.
TCR-01N-KT
Torque: 10Nm Voltage: AC220V
Control: KT32S (Fail Safe, Close when Power Fail)
Control voltage: AC220V
Housing: PC alloy
Output shaft: 11X11MM
0.8m cable Option: Failsafe close

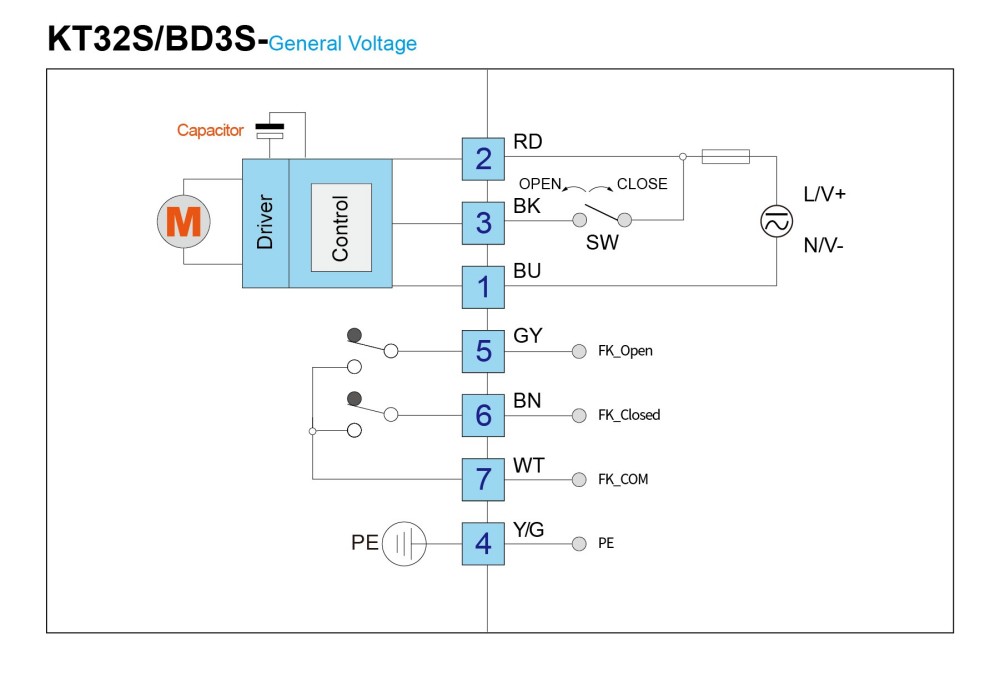

Control instructions:
When SW is disconnected, the actuator drives the valve clockwise↻. Once the valve is fully closed, 7 is connected with 6, giving a closing signal.
When SW is connected, the actuator drives the valve anticlockwise ↺ to open. Once the valve is fully open, 7 is connected with 5, giving an opening signal.
Notice 1: 7 is non-connected with 6 and 5, when the actuator is running.
Notice 2: The feedback signal will be slightly earlier than the actual position. Please avoid cutting the power immediately after receiving the feedback signal.
Notice 3: When power cuts, actuator will drive valve to close.
Actuator Only - Valves to be purchased separately
Lead times:
2-3 Working Days (In Stock)
10-14 Working Days (Back Order)
